Assembly Instructions | |
|

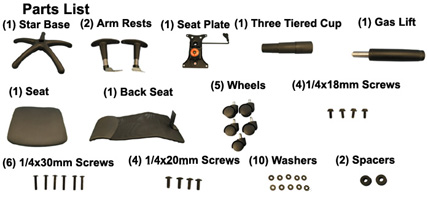

The quantities are in parenthesis. | |
|
#1
The first step is to put the base together. Place the five wheels onto the star base. |
#2
The next step is to put the Gas Lift into the center and to put the Three Tier Cup over it. |
|
#3
The next step is to attach the Arm Rests onto the Seat. You will need the four 1/4x20mm Screws with the rounded tops and two 1/4x30mm Screws. The four smaller screws go in the four outside holes, while the longer screws go on the inside. Place a spacer down over the holes closest to the center of the chair first and then set the Arm Rest on top of it. All of these screws need washers, so go ahead and screw them all down just as the image above shows. |
#4
The next step is to screw the Seat Plate into place. It needs the four 1/4x18mm square topped screws without any washers. There are holes on the seat plate which should be placed over the screw holes for the Back Seat, otherwise you will not be able to screw it down. |
|
#5
The next step is to attach the Back Seat. Place the back seat over the four holes and the Seat Plate in this instance. Go ahead and screw in the Back Seat using the remaining washers and 1/4x30mm Screws. |
#6
The final step is to place the seat on top of the gas lift. Apply pressure onto the seat in order to stabilize the stool. Adjust height as needed. |
QZY0606
