Assembly Instructions | |
|

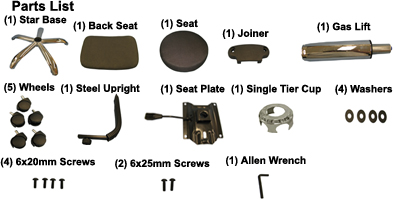

The quantities are in parenthesis. | |
|
#1
The first step is to put the base together as shown in the picture. Place the five wheels onto the star base. Also, go ahead and place the Single tier cup on top of the star base. |
#2
The next step is to put the gas lift into place. |
|
#3
The next step is to put the back seat together. Take the Steel Upright and place it inside of the Joiner as shown in the image above. The Steel Upright has been highlighted so that it could be clearer how it fits inside. Then, place the joiner onto the back of the back seat and match up the holes. Then use the 6x25mm screws to put it into place. |
#4
The next step is to put the seat together. Place the seat plate onto the bottom of the seat, matching it to the holes. Using the 6x20mm screws and the washers, screw the seat plate into place. |
|
#5
The next step is to attach the back onto the bottom of the chair. Unscrew the knob that comes attached to the Steel Upright and then slide it into place underneith the Seat Plate. Then, go ahead and put the knob in the hole provided and tighten the Steel Upright down. |
#6
The final step is to place the seat on top of the gas lift. Apply pressure onto the seat in order to stabilize the stool. Adjust height as needed. |
