Assembly Instructions | |
|

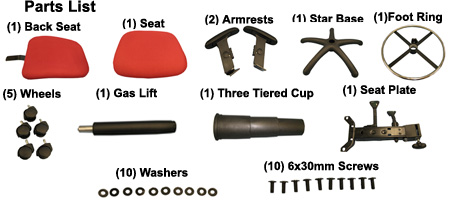

The quantities are in parenthesis. | |
|
#1
The first step is to place the Wheels onto the Five Star Base. |
#2
The next step is to put the Gas Lift into place. From there, go ahead and place the Foot Ring around the Gas Lift and tighten it down with the knob. You may also place the Three Tier Cup over the Gas Lift. It goes above the Foot Ring and fits over the Gas Lift. |
|
#3
The next step is to put the Armrests together. There are three holes an armrest at the bottom of the Seat. Using six screws and six washers, go ahead and attach the Armrests. You will need a philips head screwdriver. |
#4
The next step is to put the Seat Plate onto the Seat. There are four screw holes for your remaining screws and washers. Go ahead and line up the seat plate and then Screw it into place, also using a philips head screwdriver. |
|
#5
The next step is to attach the back onto the bottom of the chair. The back part of the Seat Plate sticks out and has a spot where you can slide the Back Rest onto it. Put it at your desired height and then, using the knob, tighten down the back rest until it won't slide. |
#6
The final step is to place the seat on top of the gas lift. Apply pressure onto the seat in order to stabilize the stool. Adjust height as needed. |
BRDRAFTSTOOL, BLDRAFTSTOOL, BKDRAFTSTOOL, LEDRAFTSTOOL
