Assembly Instructions | |
|

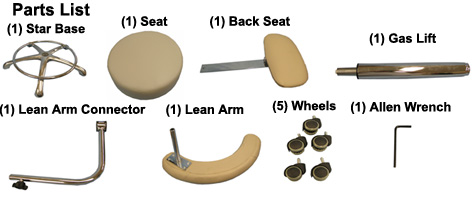

The quantities are in parenthesis. | |
|
#1
The first step is to put the base together as shown in the picture. Place the five wheels onto the star base. |
#2
The next step is to put the gas lift into place. |
|
#3
The next step is to place the Lean Arm Connector onto the Gas Lift. You may adjust the screws in the side of the Connector with the Allen Wrench as needed. |
#4
The next step is to place the seat on top of the Gas Lift. Apply pressure onto the seat to snap it into place. If it is not snapping, then you may need to adjust the height of the Gas Lift, by pushing on the little white button on top. |
|
#5
The next step is to attach the Lean Arm. Slide the pole into the connector and tighten it down with the knob on the side. |
#6
The final step is to attach the Back Seat. Slide metal base of the Back Seat down into the slot on the back of the Seat and put it at your desired height. Turn the knob on the side until the Back Seat will no longer move, so that it will stay in place. |
